Arm the player
Select the current player and authorize the attempt before a shot can become an official event result.
PATENT PENDING • VISION-BASED GOLF MEASUREMENT
Know exactly
who's closest.

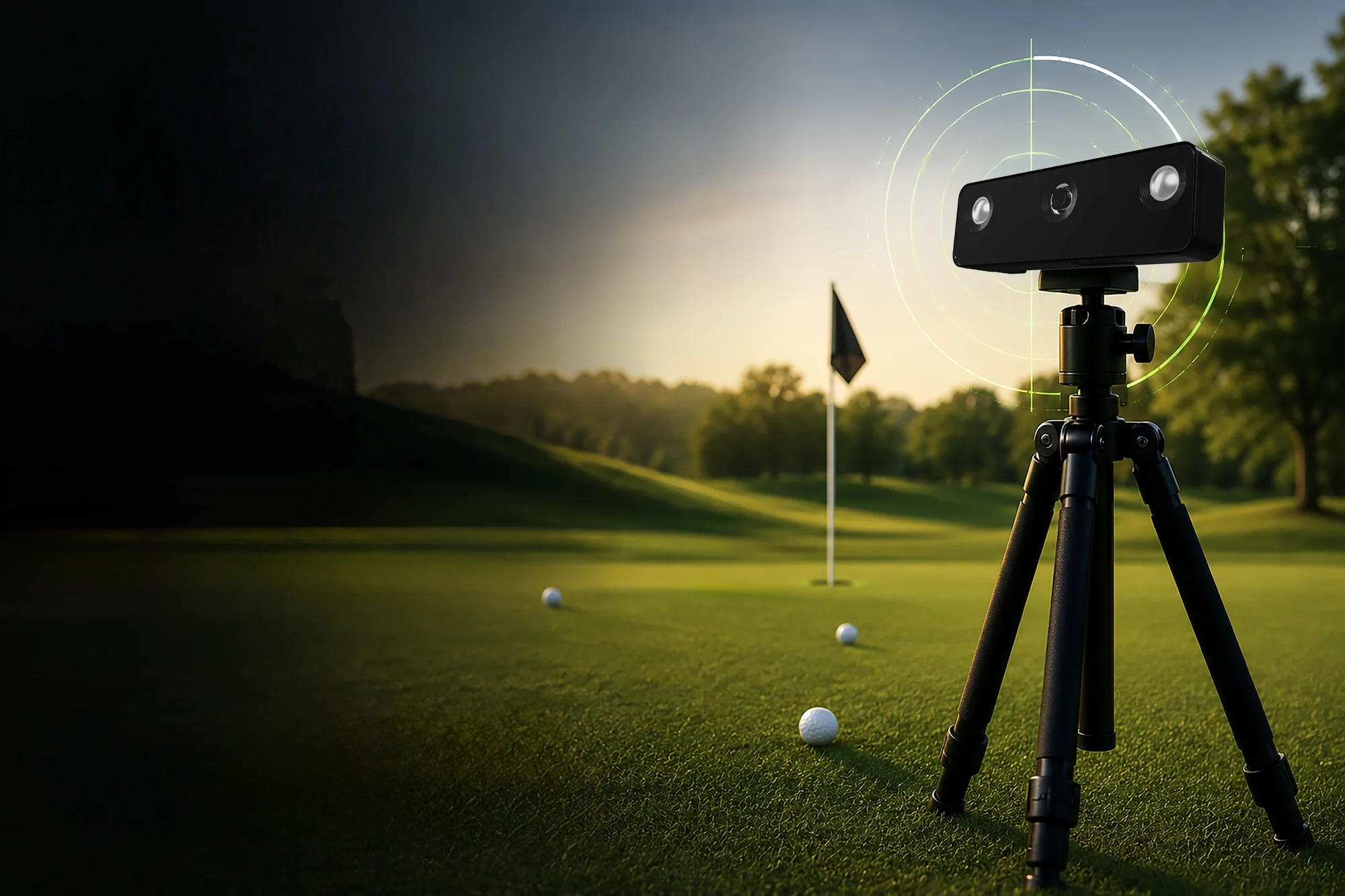

Pinpoint™ turns a defined golf target area into a self-contained measurement and contest station—qualifying settled balls, measuring physical distance, confirming holed shots with an independent Smart Cup sensor, and updating results automatically.
Local-firstStandard golf ballsLive rankingsSmart Cup confirmed
01 / PINPOINT REDEFINED
MORE THAN A CAMERA. A COMPLETE MEASUREMENT WORKFLOW.
Measure the shot.
Confirm the result.
Run the contest.
Pinpoint combines vision measurement, guided calibration, player-attempt control, persistent event records, live ranking, and independent physical cup confirmation in one local system. The result is a contest experience that can operate without constant cloud connectivity or manual tape measurement.

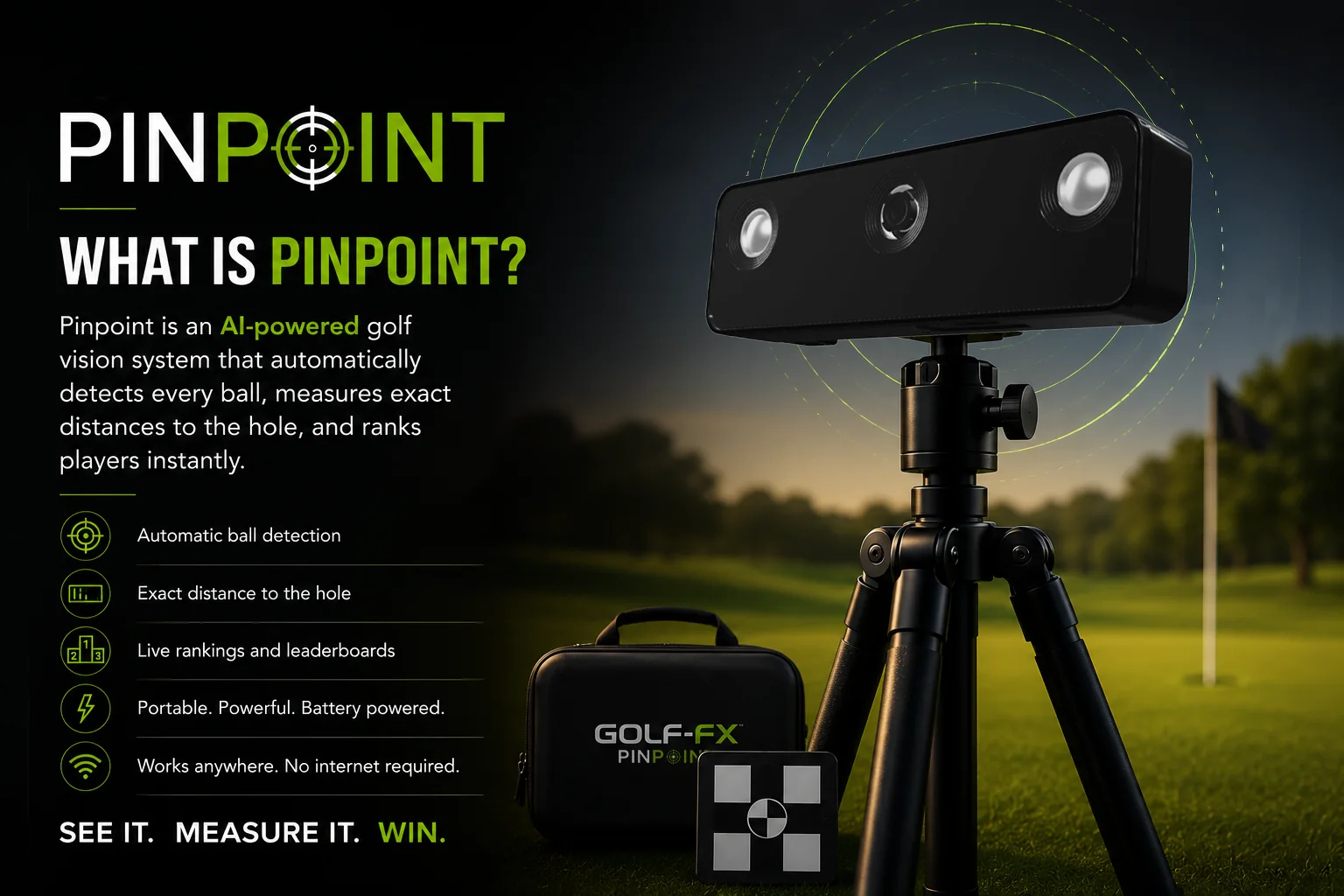

02 / THE PRODUCT
A software-defined station built for real golf.
The commercial system is designed around qualified off-the-shelf imaging and local computing hardware. Pinpoint’s value lives in the software-defined calibration, measurement, event workflow, persistence, ranking, display, and recovery architecture.
- One defined measurement area
- Local processing and persistent storage
- Guided footprint calibration
- Independent Smart Cup confirmation

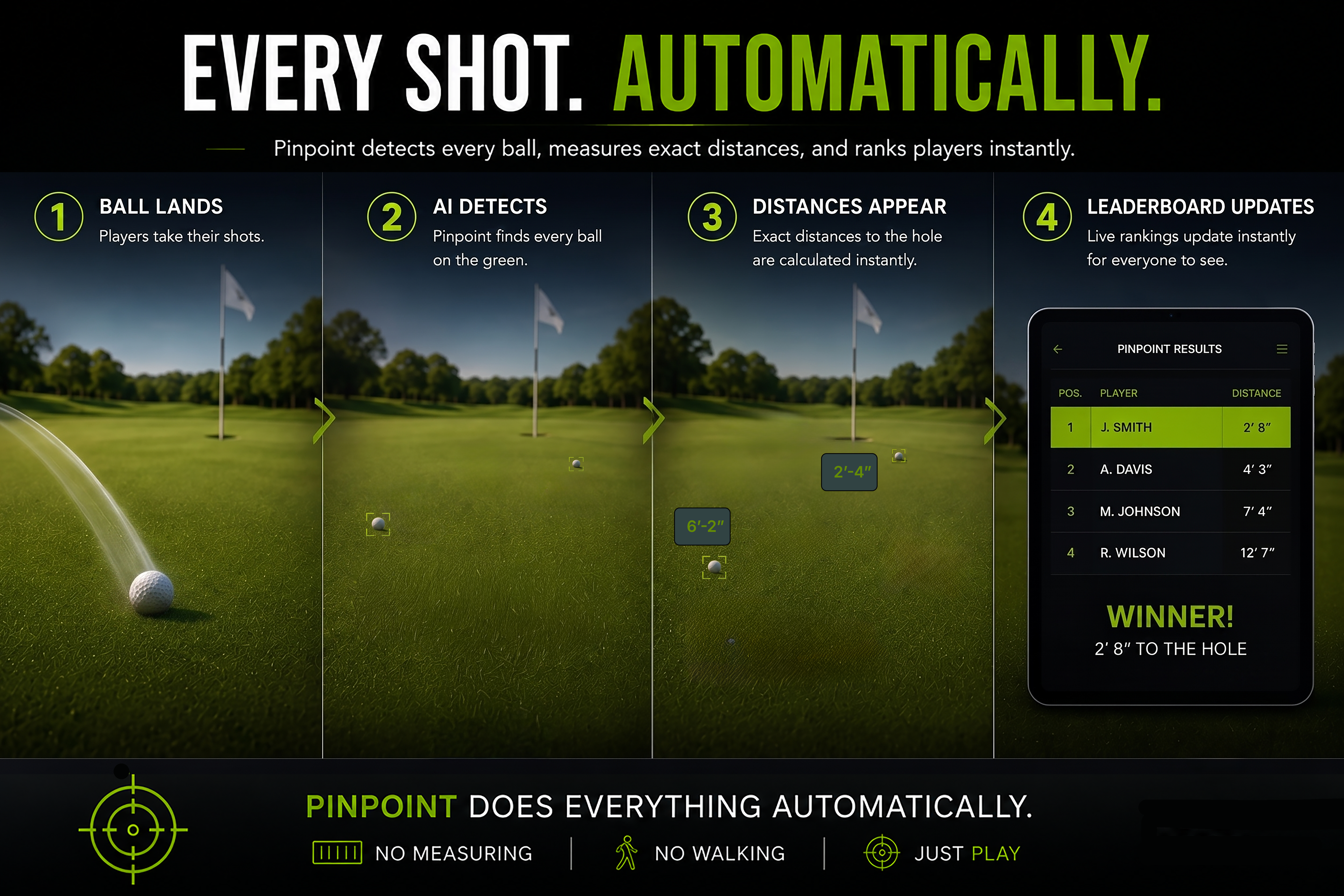

03 / AUTHORITATIVE RESULT WORKFLOW
From player to result—controlled at every step.
Pinpoint does not make an official result simply because a ball appears in frame. The system qualifies the measurement and ties it to the active player attempt.
Detect the ball
Vision identifies a golf-ball candidate inside the calibrated measurement footprint.
Wait until settled
Position is tracked over time. Moving or transient observations are withheld until stability criteria are satisfied.
Convert to physical distance
The settled image position is transformed into the selected footprint’s physical coordinate system.
Know when it is holed
If the ball enters the cup, the independent cup sensor provides physical confirmation rather than assuming a missing ball was holed.
Rank and record
The authoritative result is stored with the player and attempt, then rankings and audience displays update.
CONFIRMED SETTLED RESULT2' 8"J. SMITH
04 / SETTLED-BALL QUALIFICATION
Pinpoint measures where the ball finishes.
Ball candidates are tracked across multiple observations. A result can be held pending until movement falls below the configured threshold, confidence is sufficient, and the ball remains inside the valid measurement region.
VALID REGIONInside the calibrated footprint
SETTLED STATEStable position over a dwell interval
CONFIDENCEMeasurement quality satisfies the event rule
ARMED ATTEMPTAuthorized player association is active

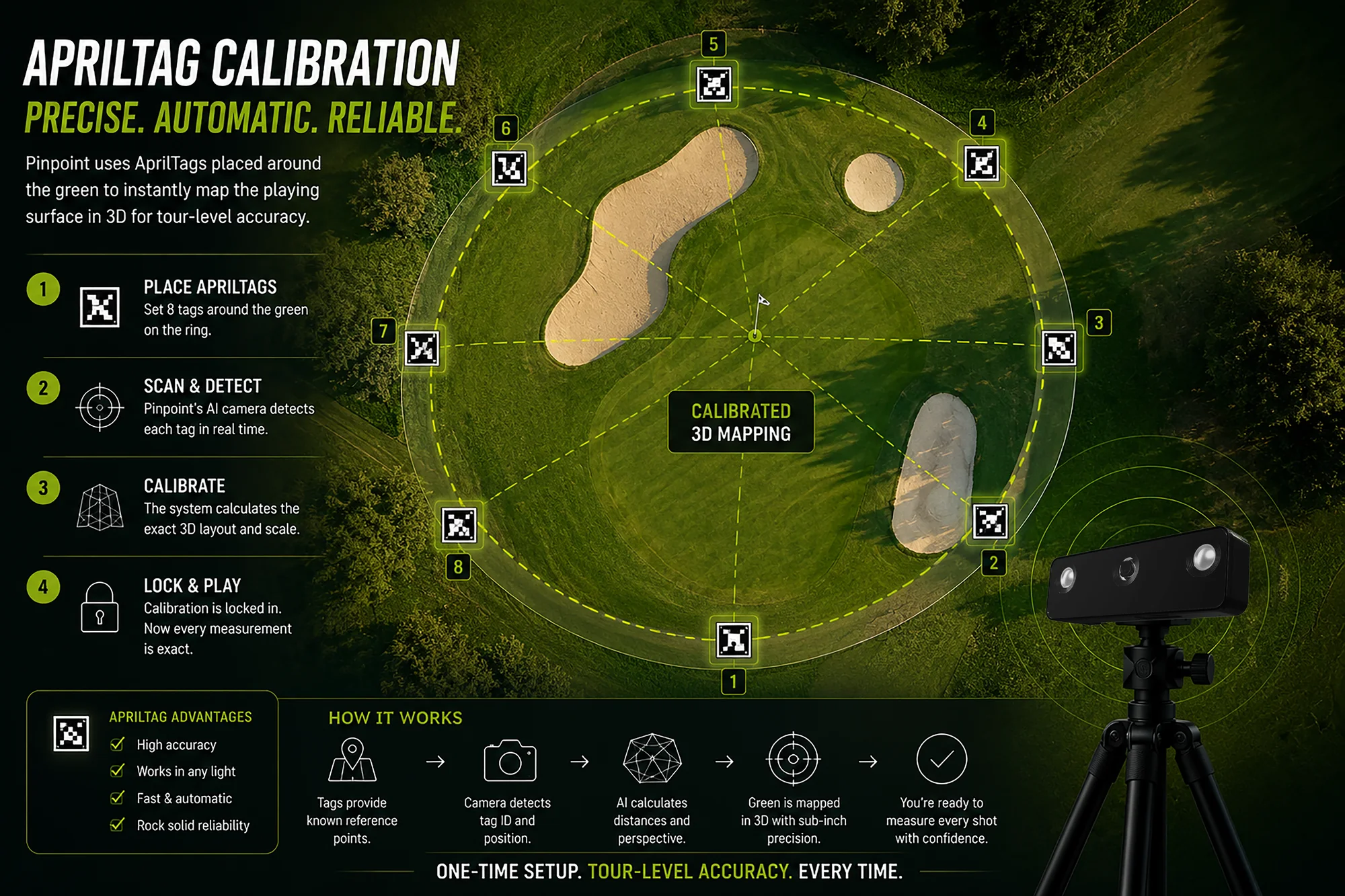

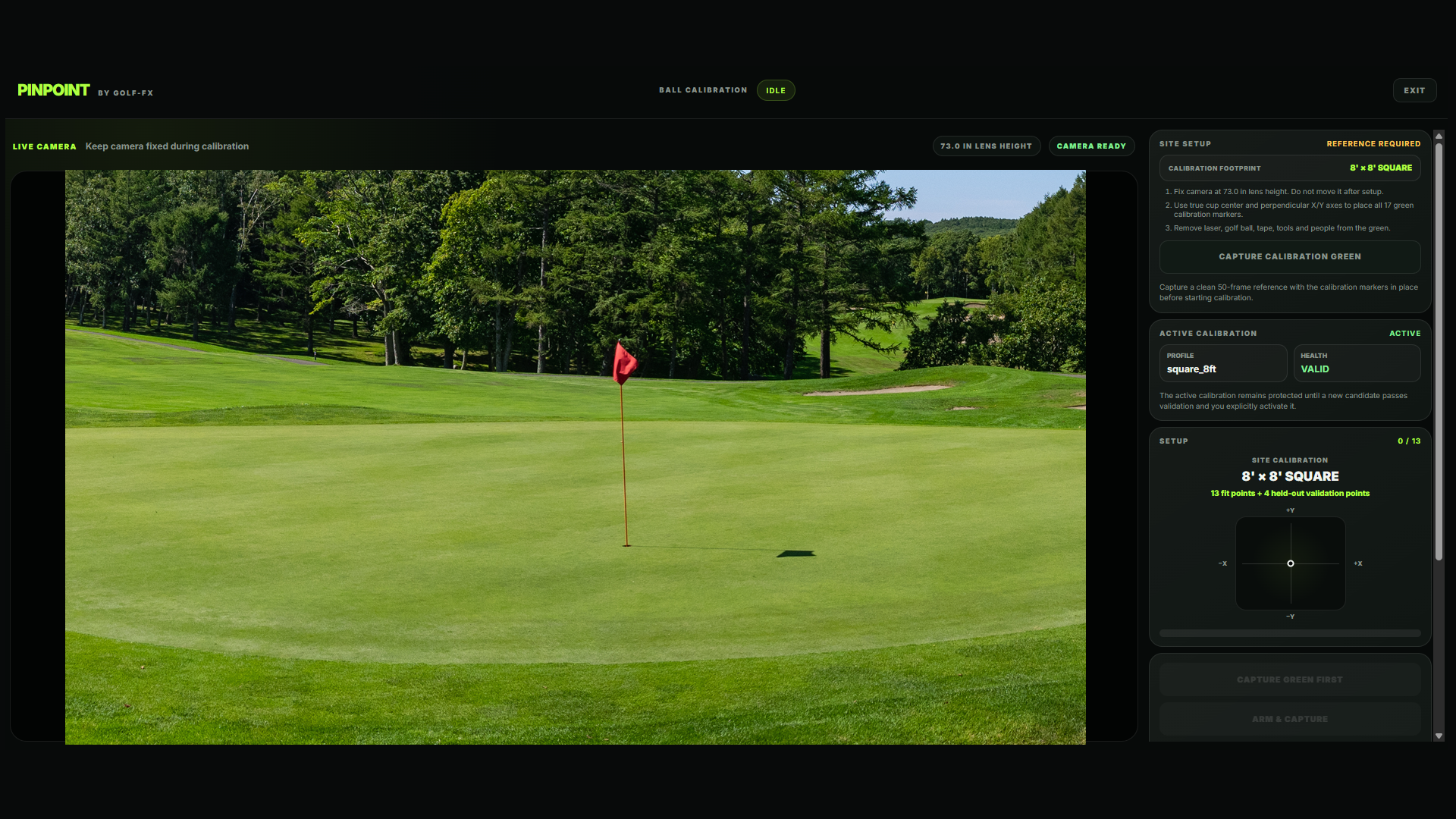

05 / PREDEFINED FOOTPRINT CALIBRATION
Known geometry. Guided commissioning.
Instead of asking an installer to invent a measurement area from scratch, Pinpoint can load a predefined physical footprint with known dimensions, boundaries, target rules, and calibration-reference locations.
Temporary references during commissioning. Machine-readable fiducials or equivalent reference features can establish the image-to-physical transformation, then be removed before ordinary play.
CALIBRATION HEALTHVALID
06 / INDEPENDENT CUP CONFIRMATION
Near the cup is measured.
In the cup is confirmed.
Pinpoint pairs vision-derived ball position with an independently sensed physical cup-entry event. That distinction matters: a ball visually close to the cup is still a distance result; a ball physically entering the cup can be recorded as HOLED even if vision loses sight of it during entry.
VISIONSettled distance
+SMART CUPCUP_MADE
→RESULT ENGINEAUTHORITATIVE RESULT

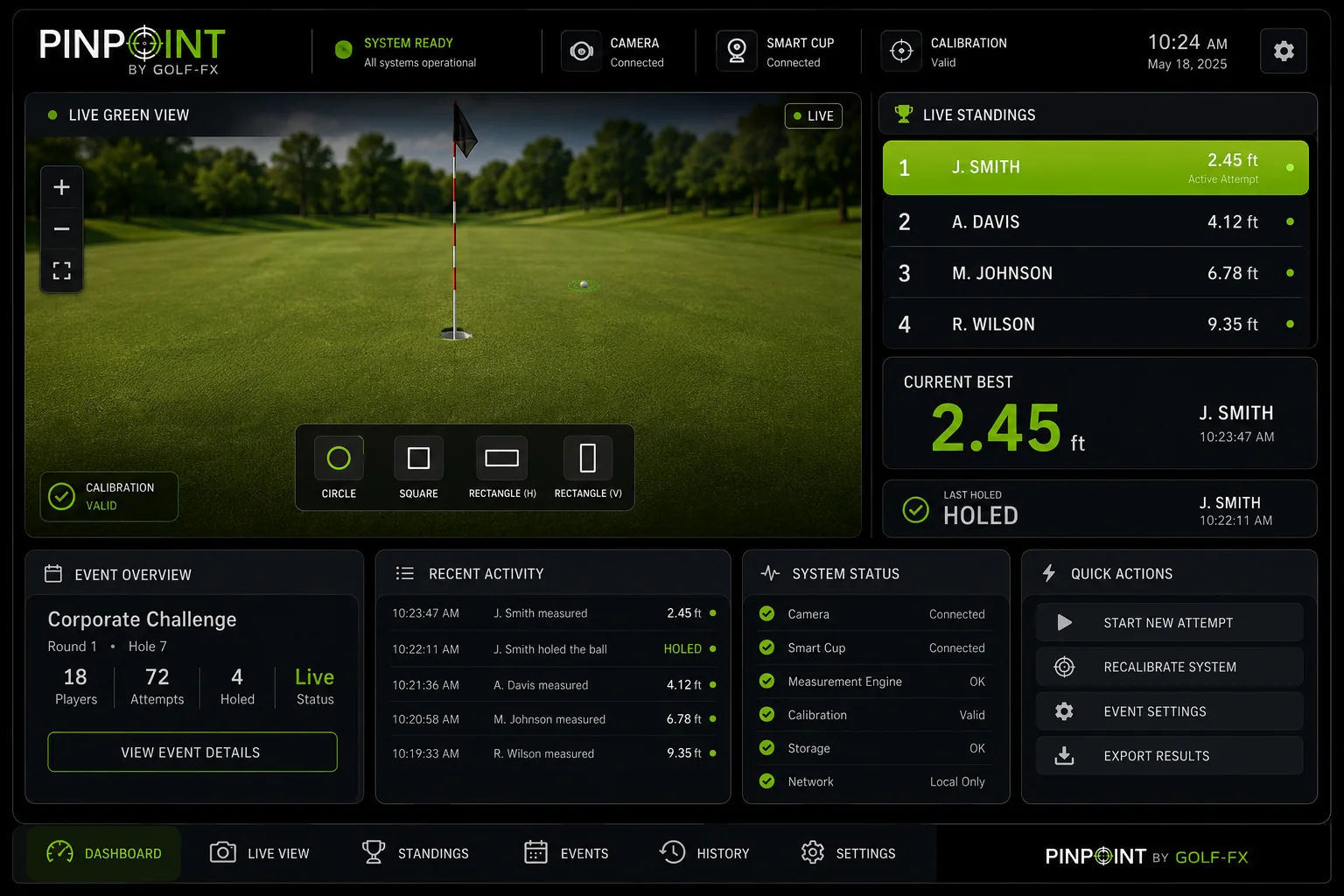

07 / CONTEST MANAGEMENT
Built for the event—not just the measurement.
Create players, control the active attempt, persist official results, rotate to the next golfer, and keep the leaderboard current from the same local authoritative event data.
PINPOINT EVENT MANAGERLOCAL
CURRENT PLAYERJ. SMITH
Attempt 1READY TO ARM
Event: Member Closest-to-PinPlayers: 24Footprint: Circle 24 ft
LIVE LEADERBOARDEVENT ACTIVE
1J. Smith2' 8"
2A. Davis4' 3"
3M. Johnson7' 4"
4R. Wilson12' 7"
PLAYERATTEMPTDISTANCERANKTIMESTAMPCONFIDENCEEXPORT
08 / LOCAL-FIRST EDGE OPERATION
The contest does not need the cloud to know who won.
Core measurement, player association, persistent storage, ranking, and local display can operate on the station itself. Cloud services can remain optional for remote support, backups, software updates, fleet tools, or cross-site analytics.
MeasurementEvent stateRankingsRecoveryAudience displayData export
CAMERA
SMART CUP
LOCAL PROCESSORPINPOINTMeasurement • Event • Ranking • Storage
ADMIN UI
AUDIENCE DISPLAY
OPTIONAL CLOUD
Support • Updates • Backup
Support • Updates • Backup
09 / COMMERCIAL APPLICATIONS
One platform. Multiple ways to compete.
Closest-to-the-Pin
Automated tournament and member contests with official player-attempt association.
Corporate & Charity Events
A premium activation with live rankings, sponsor-ready audience display, and exportable results.
Accuracy Challenges
Closest-to-target, target-zone, qualification, and multi-attempt best-result formats.
Practice & Analysis
Objective distance and grouping feedback without entering measurements into an official event.
IMAGE PLACEHOLDER10 / ONE SOURCE OF TRUTH
Admin control here.
Audience excitement there.
The event-management interface and the separate audience-facing display can consume the same authoritative local event data while remaining independently presented and controlled.
- Current player and attempt state
- Live ranking and recent results
- Restart recovery of active events
- CSV and spreadsheet-compatible export
11 / THE PINPOINT STATION
Compact hardware.
Serious workflow.
Pinpoint is designed to deliver commercial measurement functionality primarily through qualified imaging and computing hardware plus GOLF-FX software, calibration data, configuration, and event processing.
01Qualified imaging sensor
02Qualified local computing platform
03Persistent local event storage
04Pinpoint measurement & contest software
05Calibration references and footprint profiles
06Integral Smart Cup / cup-entry detector
07Local admin and audience interfaces
AUTOMATED GOLF MEASUREMENT • CONTEST MANAGEMENT • SMART CUP CONFIRMATION
Know the shot.
Know the result.
Pinpoint gives courses, event operators, and commercial golf experiences a controlled way to measure, confirm, rank, display, and preserve every official attempt.
GOLF-FX Pinpoint™ • Patent Pending
